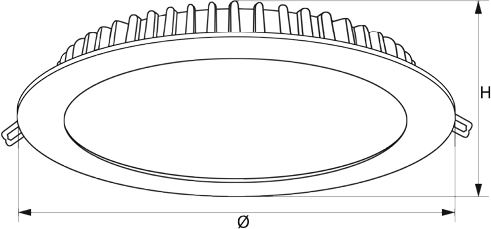

| Model | LED Lumen (lm) | LED Power (W) | Dimensions Ø x H (mm) | Cutout Ø (mm) |
|---|---|---|---|---|
| TLX-7105 A (Tridonic) | 2300 | 23 | 180 x 27 | 155 |
- LED Module nominal Lumen & Power for 4000K
- Customized Lumen & Power can be acheived
| HOUSING | Aluminium |
| FINISH | Powder Coated to RAL 9016 Matt |
| OPTIC | Opal Diffuser with Matt White Reflector |
| INSTALLATION | Ceiling Recessed |
| HEAT SINK | Aluminium |
| LED MODULE | Edison / Thornlux |
| MODULE EFFECIENCY | >100lm/W |
| LUMINOUS FLUX | ± 10 % |
| COLOR TEMPERATURES | 4000K / 6500K (3000K on request) |
| BEAM ANGLES | 120° |
| AMBIENT OPERATING TEMP | From -20°C to +45°C |
| COLOR RENDERING INDEX | CRI > 80 |
| LIFETIME (L70B50) | 50,000 hours |
| LED DRIVER | Tridonic |
| SHAPE | – |
| WARRANTY | 5 years (Tridonic) |
| OPTIONS | Dimming, Emergency Kit |
