| HOUSING | Sheet Steel |
| FINISH | Powder Coated to RAL 9016 Matt |
| OPTIC | Opal / Micro-Prism Acrylic Diffuser |
| INSTALLATION | Lay-In / Clip-In / Gypsum and Metal Ceiling |
| LED MODULE | Tridonic / VS / TCI / Philips / Thornlux |
| MODULE EFFECIENCY | >154lm/W (Rigid PCB) |
| LUMINOUS FLUX | ± 10 % |
| COLOR TEMPERATURES | 3000K / 4000K / 5000K (6500K on request) |
| DISTRIBUTION | – |
| AMBIENT OPERATING TEMP | From -20°C to +45°C |
| COLOR RENDERING INDEX | CRI > 80 |
| LIFETIME (L70B50) | 50,000 hours |
| LED DRIVER | Tridonic / VS / TCI / Philips (Integral) |
| SHAPE | – |
| WARRANTY | 5 years |
| OPTIONS | Dimming, Emergency Kit, UGR ≤ 19 |

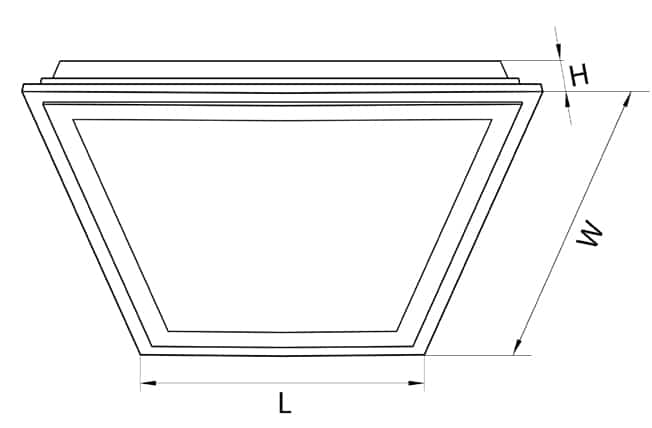

| Model | LED Lumen (lm) | LED Power (W) | Dimensions L x W x H (mm) |
|---|---|---|---|
| TLX-6032 A (Lay-In) | 5280 | 30.0 | 595 x 595 x 105 |
| TLX-6032 B (Dampa) | 5280 | 30.0 | 600 x 600 x 105 |
| TLX-6032 C (Lay-In) | 6960 | 40.4 | 595 x 595 x 105 |
| TLX-6032 D (Dampa) | 6960 | 40.4 | 600 x 600 x 105 |
